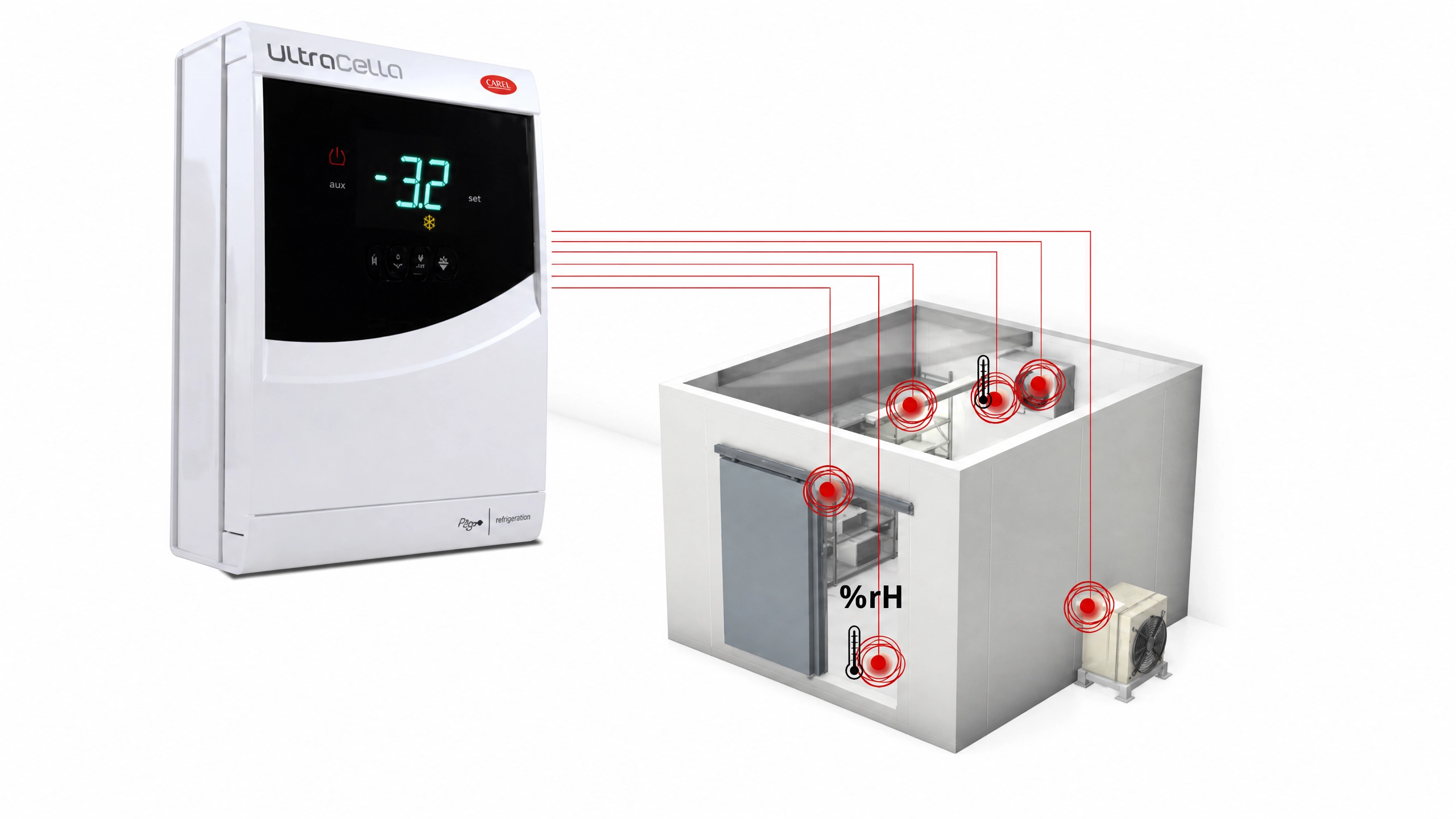

The new generation of controls based on latest CAREL technology and innovative mechanical concept. A wide range of controls, to fit all cold rooms needs in term of types, features, and size.
• Up to 6 relays (compressor, defrost, evaporator fans, light and 2 auxiliary outputs for additional features);
• Up to 4 temperature probes and humidity sensors;
• Temperature data logging (HACCP);
• Configuration through wizard, available on Service Tool (optional); • Easily upgradable with expansion modules thanks to the new mechanical modular concept;
• DIN rail track for fast wall mounting.
Easy commissioning:
Configuration export:
• easy commissioning thanks to simple pre-setting navigation
• possibility to connect a graphical display for a simple configuration wizard
USB
Configuration export:
• After commissioning you can save parameters on USB key for your next cold room.
More control…
• Controllingupto2 additional features
• 2° compressor
• Pump down
• Condenser fan
• Humidification system
• Variable speed evaporator fans management

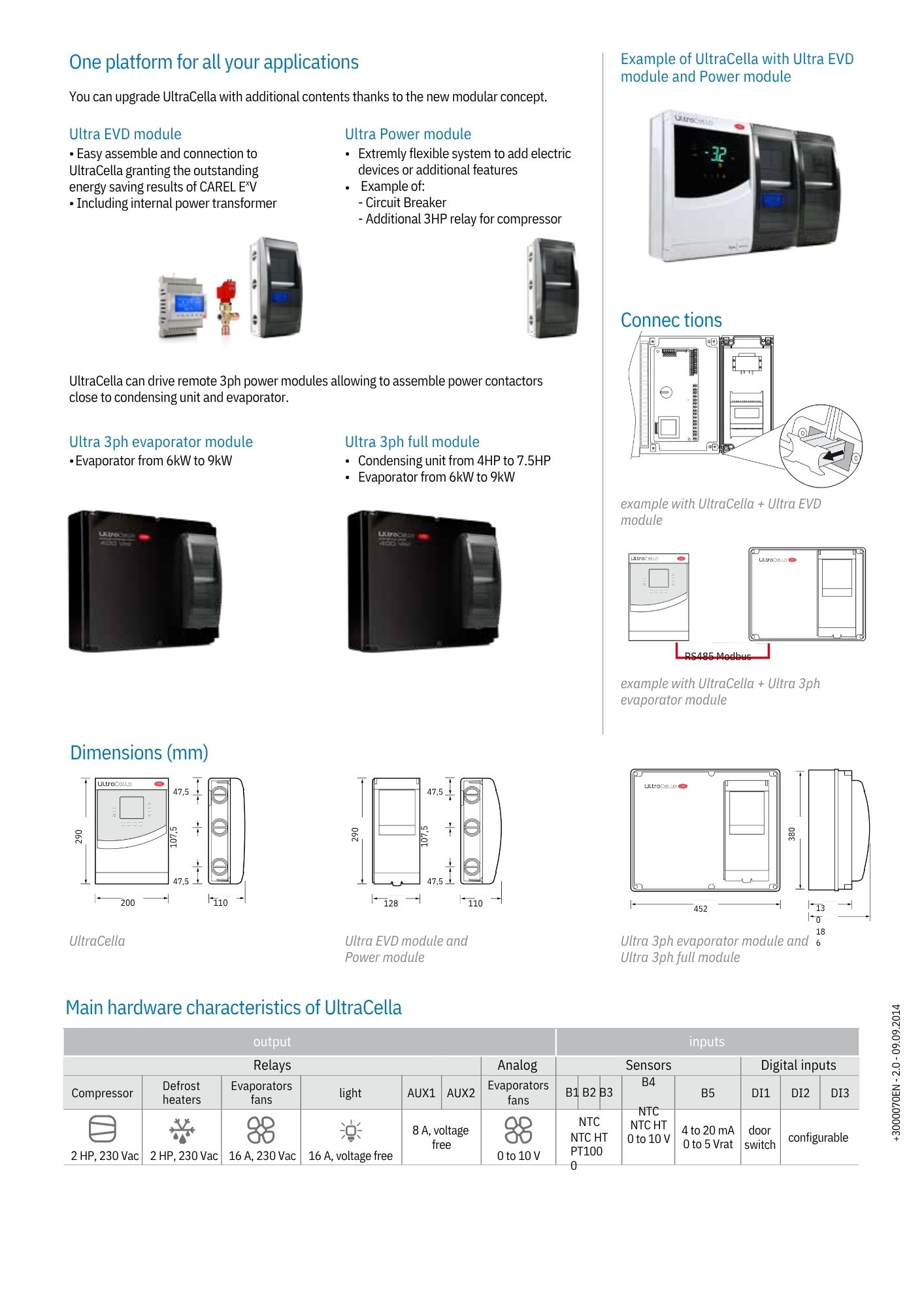

UltraCella and its expansion modules are easy to assemble, on DIN rail directly or preassembled before mounting. Wiring is comfortable thanks to 3 wide by-pass holes and IP65 of the complete set is granted.
