Thông Tin Sản Phẩm

Total refrigeration unit management

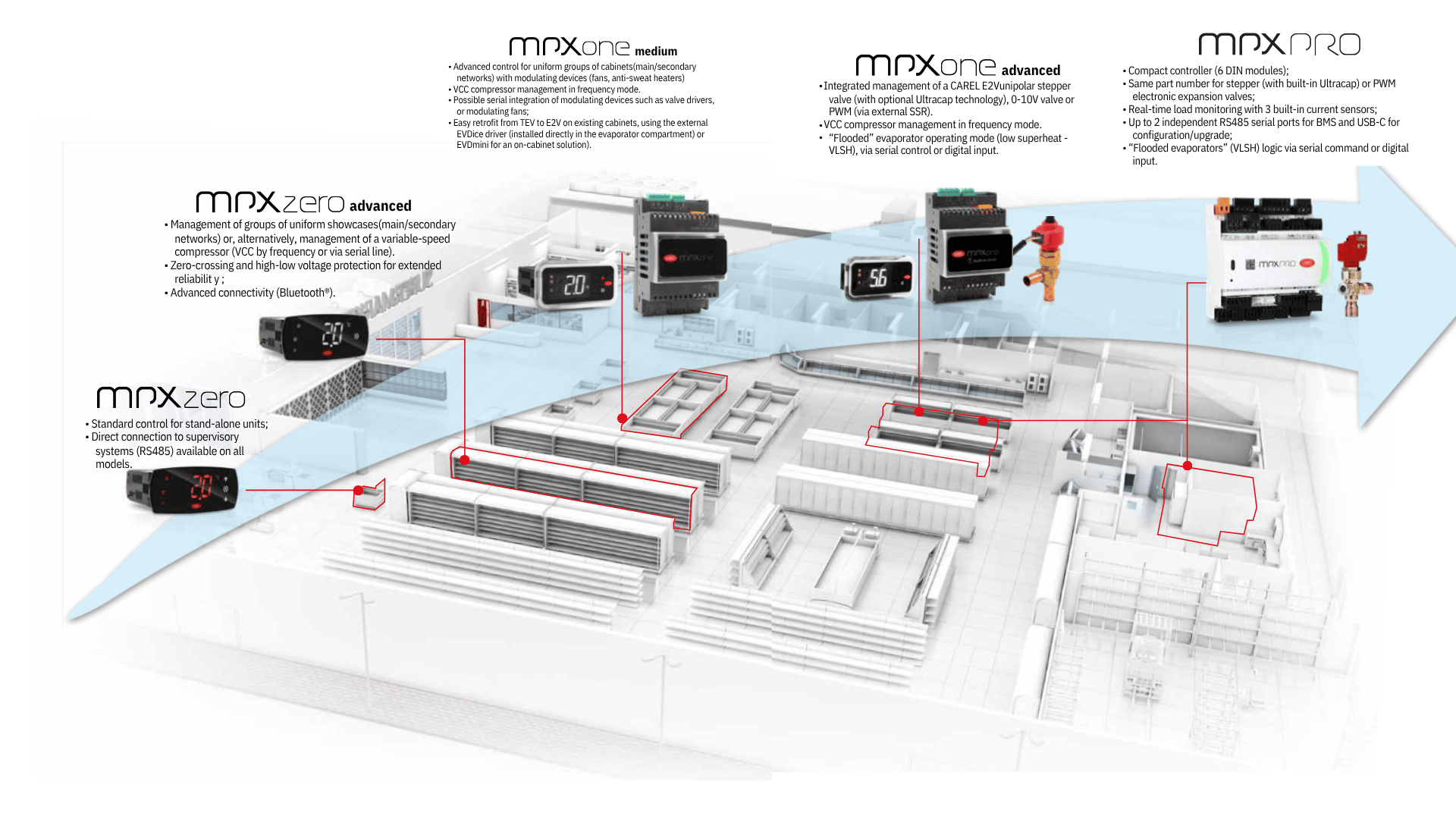

MPX is the innovative series of electronic controllers for the management of refrigerated showcases in supermarkets. Developed on platforms that guarantee high flexibility and scalability, this range of products can meet all market demands for this application: from ease of use and installation to highly-efficient performance.

The breadth of the range means the most suitable solution can be guaranteed to meet the needs of the application.

  • Connectivity: Easy integration into BMS systems, management of M/S networks and field devices via Fieldbus serial, NFC and Bluetooth wireless technology for immediate interaction with the refrigeration units.

  • High efficiency: Energysavings through advanced logic and control of modulating devices, now also available for more simple and compact applications.

  • Optimal food preservation and HACCP compliance: Stabilisation of thestorage temperature preserves the quality of food. Certified best practice for food safety.

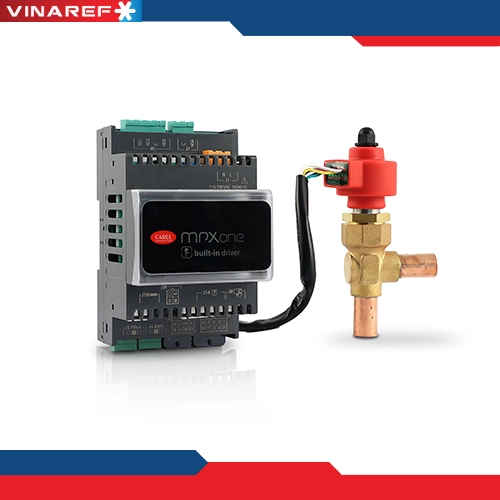

Benefits of MPXone Medium + EVDice

  • Complete serial communication between the showcase controller and the valve driver (just one device is connected to the supervisor).
  • EVDice (expansion valve) specifically developed to operate in the evaporator compartment (IP65/IP67) thanks to a special resin coating.
  • Optimal cabinet control, based on evaporator operating conditions (smooth lines).

Key features of MPXPRO

  • Extended monitoring: Up to 3 built-in current sensors for load fault detection and power consumption monitoring.
  • Flexibility: Two distinct versions of the board available:
    • 5 power relays;
    • 6 signal relays.
    • Horizontal or vertical connector assembly available.
  • Error-proof:
    • Direct connection via JST for HMI and repeater display.
    • Serial BMS with automatic polarity correction.

  • Fast to use USB-C serial port for parameter configuration and/or software upgrades from a PC, even when the controller is not powered on.

  • Versatility: Solution available in the following versions:

    • Entry (for stepper valve without Ultracap);
    • Stepper (with built-in Ultracap); PWM;
    • Universal (stepper with built-in Ultracap and PWM);
  • Intuitive operation: RGB Led to signal controller operating status



Connectivity for local and remote monitoring of all types of system

The extensive connectivity of the MPX range also covers solutions for local and remote management.

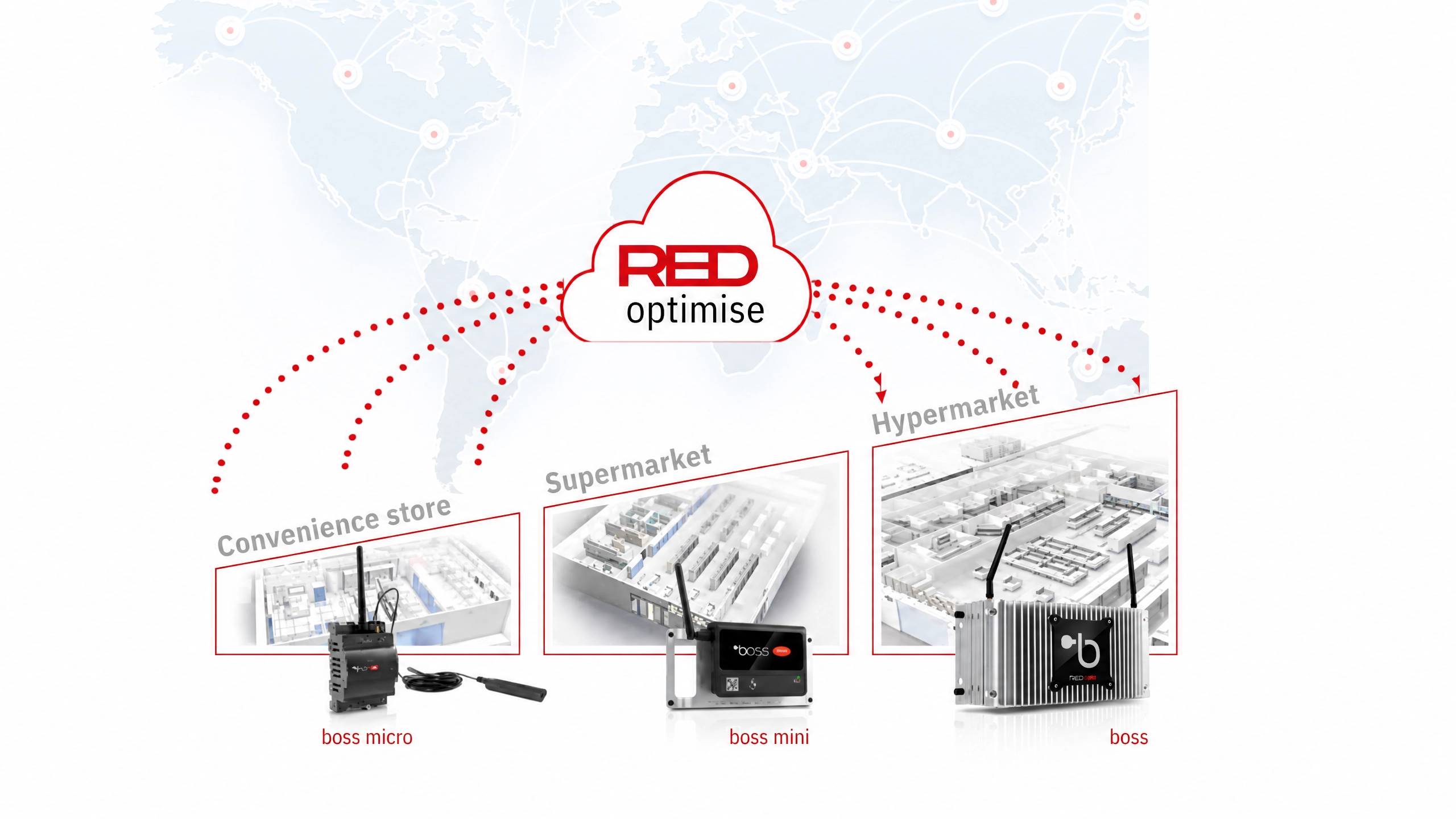

RED optimise

TheCAREL digital services cloud portal allows integration and analysis of multi-site information and provides, through intuitive, dedicated dashboards, useful information for improving system performance in terms of energy consumption and control.

A wide range of local supervisors with features available for the management and interaction between the different users of the system, so as to optimise the thermodynamic conditions and energy consumption. The boss family covers all system sizes, from convenience stores to large hypermarkets.

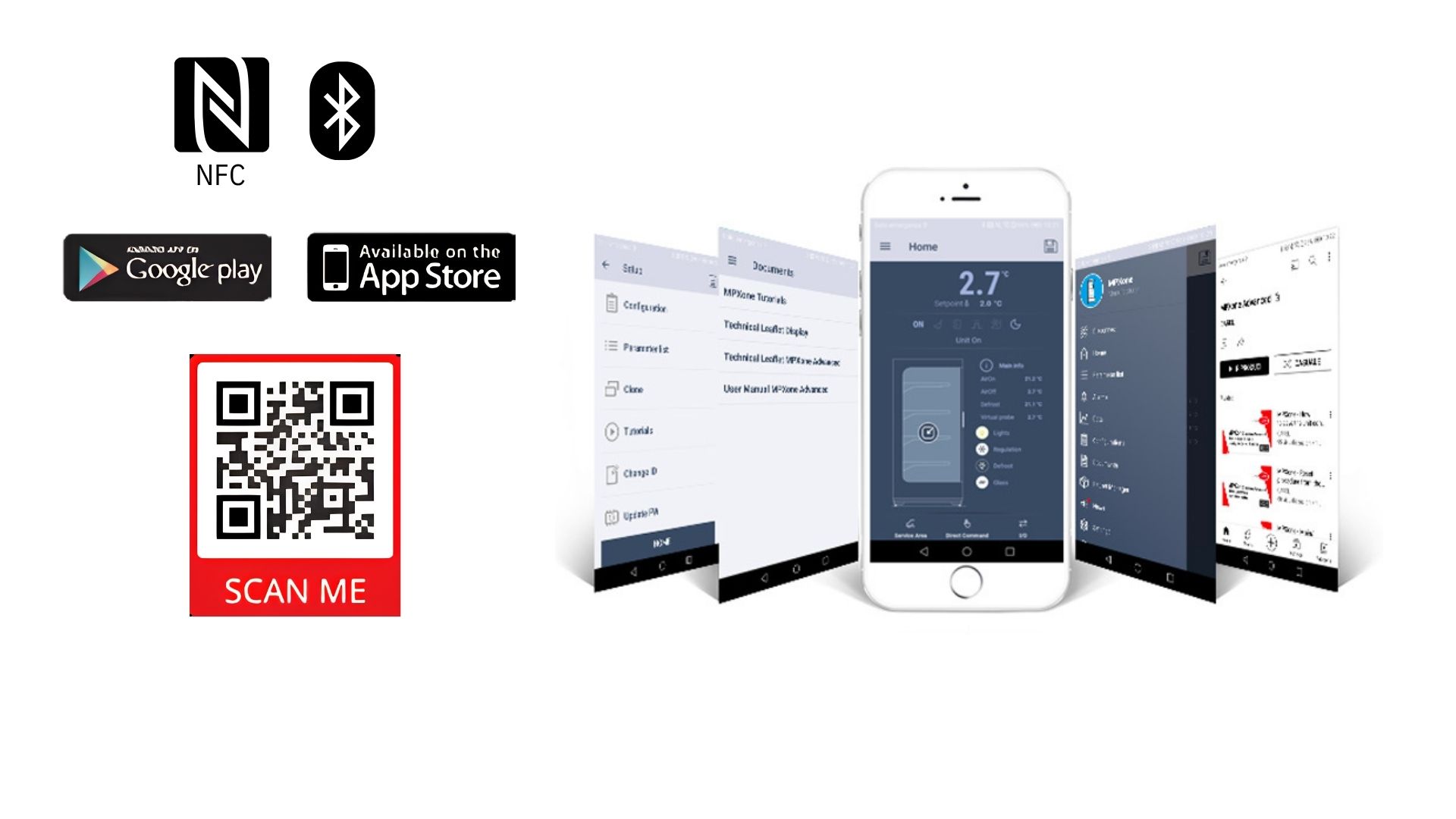

Mobile application for a new user experience

NFC and Bluetooth® wireless communications revolutionise interaction with the refrigerated cabinets.

Using APPLICA, a dedicated app, the traditional user interface is available on any mobile device (smartphone, tablet), extending functionality and usability.

Available for Android and iOS, designed to simplify commissioning and maintenance work.

Links to tutorial videos on how to connect the device and basic product configuration simplify the work of technical personnel in the field.
